Sigen Hybrid Inverter 12.0 kW TP

Note: This product has the same features as SigenStor EC TP and is ready to run with SigenStor BAT 5.0/8.0 without requiring CD-key activation. A pack of essential Sigen Screws will be included in the package upon delivery.

APRILICE

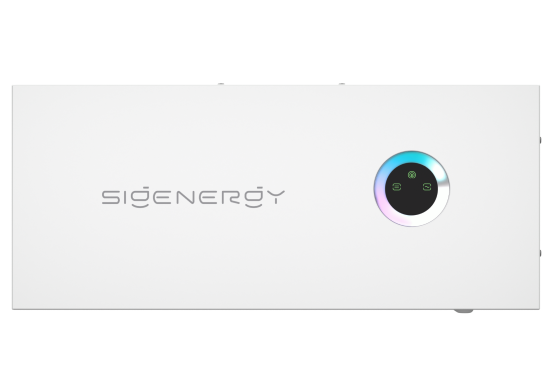

The SigenStor EC TP is a high-performance hybrid inverter with an integrated battery controller (supporting 1-6 battery modules) and datalogger (supporting WLAN, FE, and RS485). With an optional accessory, it also supports 4G/3G/2G communication.

The system offers a power range of 5.0-30.0kW and up to 98.4% efficiency, it features 2-4 MPPT trackers (model-dependent) and a DC/AC ratio of up to 1.6. Its IP66-rated construction ensures durability in diverse environments, while the smart air cooling system enhances stability and efficiency.

APRILICE

Compatible Battery Modules:

SigenStor BAT 5.0: Supports 1-6 battery module connected to each inverter, can be mixed with SigenStor BAT 8.0

SigenStor BAT 8.0: Supports 1-6 battery module connected to each inverter, can be mixed with SigenStor BAT 5.0

APRILICE

Compatible Installation Kits:

SigenStor Installation Kit for Ground-mounted: Supports Ground-mounted installations

SigenStor Installation Kit for Wall-mounted: Supports Wall-mounted installations

APRILICE

Compatible Monitors:

Sigen CommMod (4G): Supports 4G/3G/2G communication (SIM-card not included, customer to provide)

APRILICE

Compatible Power Sensors:

Sigen Sensor TP-CT120-DH (Optimal for residential installations)

Sigen Power Sensor TPE 300A CT DH

Sigen Power Sensor TPE 600A CT DH

APRILICE

Compatible Energy Managers:

Sigenergy Gateway HomeMax Three Phase: Supports back-up function, diesel generator control and energy management (Optimal for residential installations)

Sigen Gateway C&I 120kW

Sigen Gateway C&I 180 kW

Sigen Gateway C&I 300kW

Sigen Gateway C&I 600 kW

Sigen Gateway C&I 1200 kW
