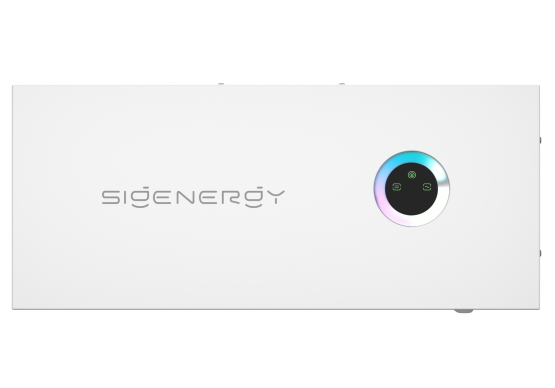

SigenStor EC 25.0 kW TP
The SigenStor EC TP is a high-performance hybrid inverter with an integrated battery controller (supporting 1-6 battery modules) and datalogger (supporting WLAN, FE, and RS485). With an optional accessory, it also supports 4G/3G/2G communication.
The system offers a power range of 5.0-30.0kW and up to 98.4% efficiency, it features 2-4 MPPT trackers (model-dependent) and a DC/AC ratio of up to 1.6. Its IP66-rated construction ensures durability in diverse environments, while the smart air cooling system enhances stability and efficiency.
APRILICE
Compatible Battery Modules:
SigenStor BAT 5.0: Supports 1-6 battery module connected to each inverter, can be mixed with SigenStor BAT 8.0
SigenStor BAT 8.0: Supports 1-6 battery module connected to each inverter, can be mixed with SigenStor BAT 5.0
APRILICE
Compatible Installation Kits:
SigenStor Installation Kit for Ground-mounted: Supports Ground-mounted installations
SigenStor Installation Kit for Wall-mounted: Supports Wall-mounted installations with a single inverter only (without batteries)
APRILICE
Compatible Monitors:
Sigen CommMod (4G): Supports 4G/3G/2G communication (SIM-card not included, customer to provide)
APRILICE
Compatible Power Sensors:
Sigen Sensor TP-CT120-DH (Optimal for residential installations)
Sigen Power Sensor TPE 300A CT DH
Sigen Power Sensor TPE 600A CT DH
APRILICE
Compatible Energy Managers:
Sigenergy Gateway HomeMax Three Phase: Integrated with a Power Sensor, backup functionality, diesel generator control, and energy management (Optimal for residential installations)
| CN Code | 8504409590 |
|---|---|
| Packaging Width | 700 |
| Packaging Height | 260 |
| Packaging Length | 300 |
| SKU | 11010018 |
| Weight (kg) | 36.000000 |
| Warranty (years) | 10 |
| Length (mm) | 260 |
| Bredd (mm) | 700 |
| Höjd (mm) | 300 |
