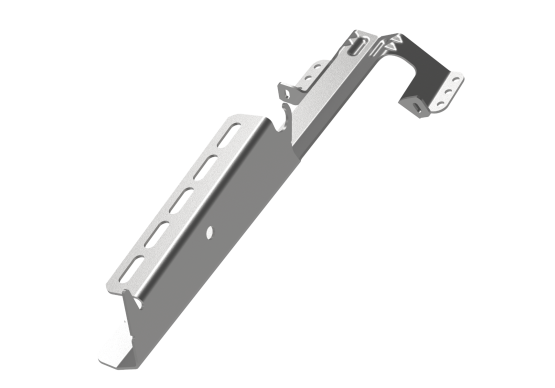

MAFI Roof Tile Bracket (Lertegelpannor och betongpannor)

För senaste datablad & dokument: Mafi solar



About the Product
The Roof Tile Bracket is a two-in-one bracket. It is designed to be fastened to the roof batten or the boarded subroof, which enables the mounting of solar panels on curved roof tiles. The Roof Tile Bracket is made from Magnelis ® and is IP-protected.

Flexibility
The Roof Tile Bracket is profiled to follow the shape of a curved roof tile to enable mounting without having to grind on, or to displace, the tiles. The Solar Rail can be installed both vertically and horizontally. When installed horizontally, the bracket has a versatile equipment hole pattern for matching the clamping zone of the panel and a stop hook to temporarily support the Solar Rail before mounting. It comes with a fixing possibility for Ø20 mm electrical routing tube which is integrated into the bracket. The recognizable MAFI hole pattern enables installations together with Roof Tile Heavy on the same roof.
