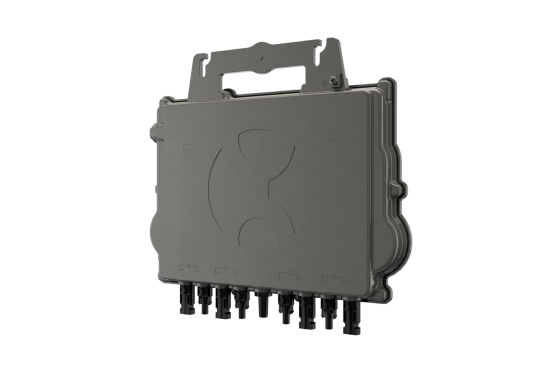

APsystems QT2 3-Phase Microinverter

The most powerful 3-phase Quad microinverter

APsystems 2nd generation of native 3-phase quad microinverters are reaching unprecedented power outputs of 2000VA to adapt to today’s larger power PV modules. With balancing 3-phase output, 4 DC inputs, encrypted ZigBee signals, the QT2 benefits from an entirely new architecture. The innovative design makes the product unique while maximizing power production. The components are encapsulated with silicone to reduce stress on the electronics, facilitate thermal dissipation, enhance waterproof properties, and ensure maximum reliability of the system via rigorous testing methods including accelerated life testing. A 24/7 energy access through apps or web-based portal facilitate remote diagnosis and maintenance. The new QT2 is interactive with power grids through a feature referred to as RPC (Reactive Power Control) to better manage photovoltaic power spikes in the grid. In addition, it provides 97% peak efficiency with 20% less components compared to the last generation product.

Designed for 3-phase grid connection

• 4 input channels with low DC voltage, 2MPPTs
• Single unit connects to 4 modules
• Maximum continuous AC output power 2000VA
• Engineered to match the highest power modules available (Maximum input current 20A)
• Safety protection relay integrated
• Adjustable output power factor
• Balancing 3-phase output
